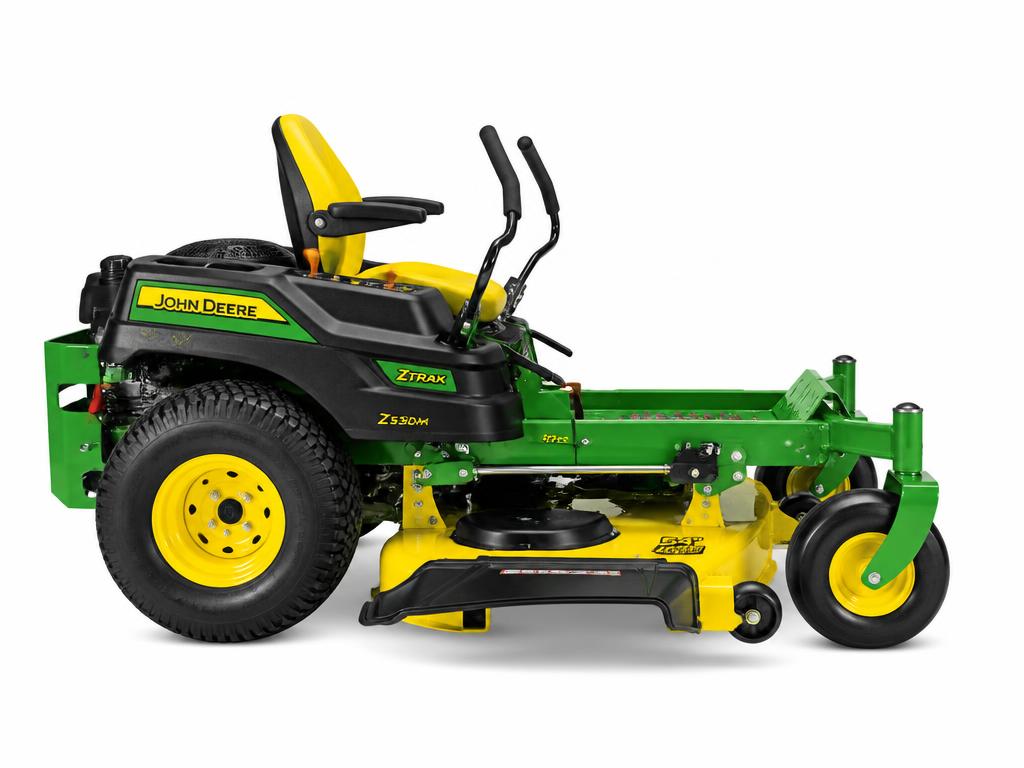

Z530M ZTrak 54-in. 24-HP V-Twin Dual Hydrostatic Gas Zero-Turn Riding Lawn Mower

Overview

The John Deere Z530M ZTrak delivers big-mower performance at an attainable price. A 24 HP V-Twin engine pairs with the 54-in. Accel Deep™ deck for a fast, clean cut across properties up to 4 acres. Dual hydrostatic drive gives you true zero-turn maneuverability, while the 20-in. high-back seat with ComfortGlide™ suspension keeps you comfortable all day.

• 24 HP (17.9 kW) V-Twin gas engine — commercial-grade power

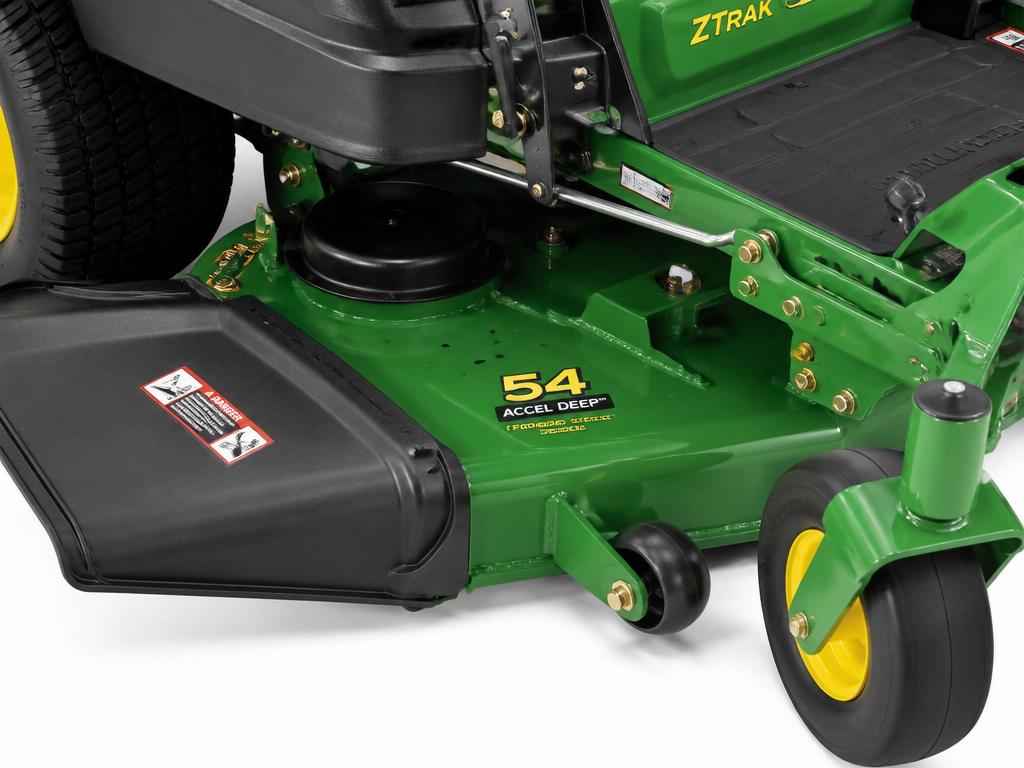

• 54-in. Accel Deep™ mower deck forged from 10-gauge steel
• Dual hydrostatic Tuff Torq® transmission — precise zero-turn control
• Maximum forward speed of 8 mph (12.9 km/h)

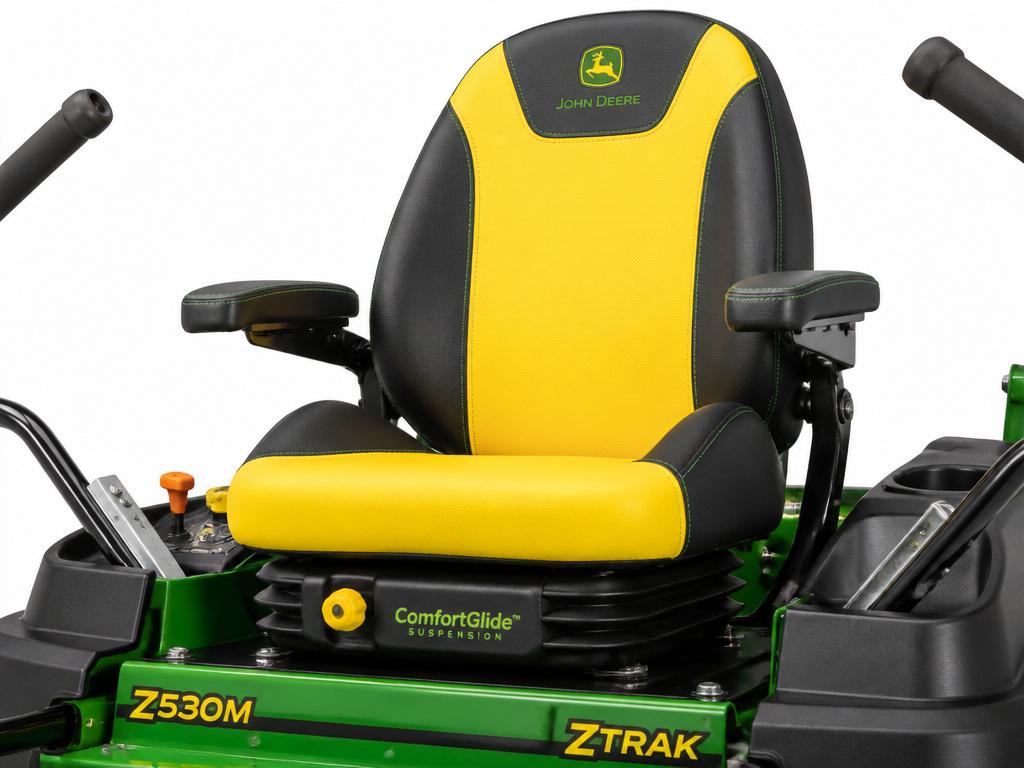

• 20-in. high-back seat with armrests and ComfortGlide™ suspension
• 4.5-gal. fuel tank with electric gauge and sight line
• 4-year / 300-hour bumper-to-bumper warranty
• Assembled in Tennessee, USA

Specifications

Model

Z530M (BG21196)

Engine power

24 HP (17.9 kW)

Engine model

FR730V V-Twin

Displacement

44.3 cu in.

Deck size

54 in. Accel Deep™

Transmission

Dual hydrostatic Tuff Torq TZT7-U

Forward speed

0–8 mph

Reverse speed

Up to 4 mph

Fuel capacity

4.5 U.S. gal.

Front caster tires

13 x 6.5-6

Drive tires

22 x 9.5-10

Seat back height

20 in.

Maximum towing

250 lb.

Recommended mowing

Up to 4 acres

Warranty

4 years / 300 hours
